Product Test

Product Test

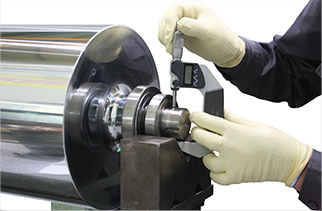

  • Micrometer(Mitutoyo)

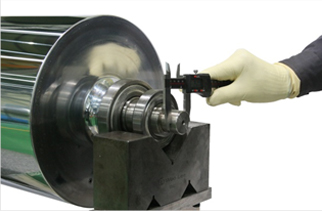

  • Vernier calipers (Mitutoyo)
  • Dial gauge (Mitutoyo)
  • Surface roughness tester (Mitutoyo)

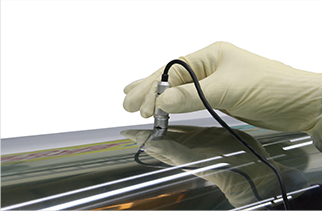

  • Plating thickness gauge (Mitutoyo)
  • Digital height gauge(Mitutoyo)
  • Xenon HID Lamp(Polarion)

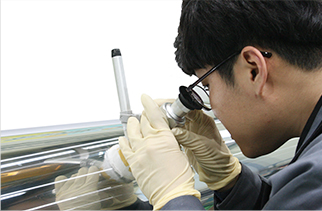

  • Stand microscope (PEAK)

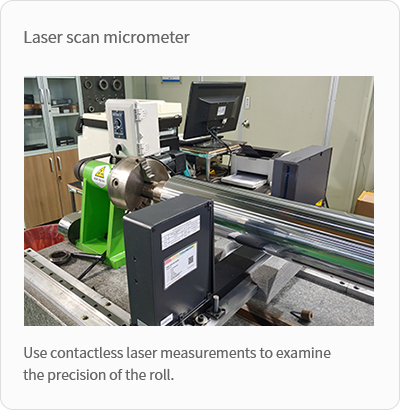

  • Laser scan micrometer (Mitutoyo)
  • Granite plate (MSP)
  • Granite plate with center (MSP)
  • Balance meter (Korean Peninsula)

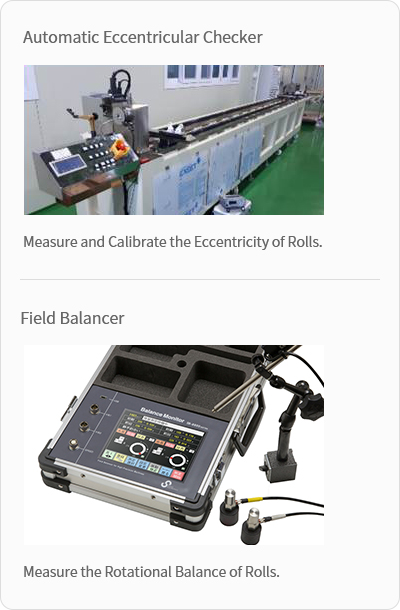

  • Automatic Eccentricular Checker
  • Field Balancer(Sigma Electronics)

  • Micrometer

  • Vernier calipers

  • Stand microscope

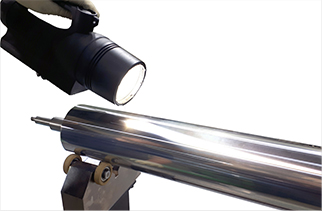

  • Xenon HID Lamp

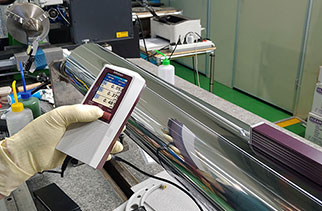

  • Plating thickness gauge

  • Surface roughness tester

  • Dial indicator

  • Digimetic indicator

  • Calipers-type micrometer

  • Depth gauge

  • Digital height gauge

Balance meter

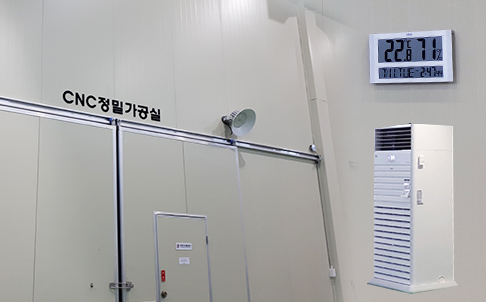

  • 24 temperature control to prevent product deformation

  • Product inspection with precision stone tablets

  • Straightness

    Calculates difference in external diameters measurements
    at different points on the same straight geometric line .

    • Measurement unit :

      0.01mm

    • Measuring instrument :

      3D measuring instrument(Prosen),
      Laser scan micrometer(Mitutoyo),
      Micrometer(Mitutoyo)

  • Roundness

    Calculates difference between measurement of the external diameter
    on the X-axis on the out-of-roundness and then the external
    diameter on the Y-axis at 90-degree.

    • Measurement unit :

      0.01mm

    • Measuring instrument :

      3D measuring instrument(Prosen),
      Laser scan micrometer(Mitutoyo),
      Micrometer(Mitutoyo)

  • Cylindrical

    Calculates difference between the largest and smallest values among
    out-of-roundness values on each point of straightness.

    • Measurement unit :

      0.01mm

    • Measuring instrument :

      3D measuring instrument(Prosen),
      Laser scan micrometer(Mitutoyo),
      Micrometer(Mitutoyo)

  • Length

    Measures distance between both ends of the same geometric straight line .

    • Measurement unit :

      0.01mm

    • Measuring instrument :

      3D measuring instrument(Prosen),
      Tape measure

  • Circular Runout

    Measures maximum T.I.R after rotating the subject 360 degrees at the center.

    • Measurement unit :

      0.01mm

    • Measuring instrument :

      3D measuring instrument(Prosen),
      Laser scan micrometer(Mitutoyo)
      Indicator(Mitutoyo)
